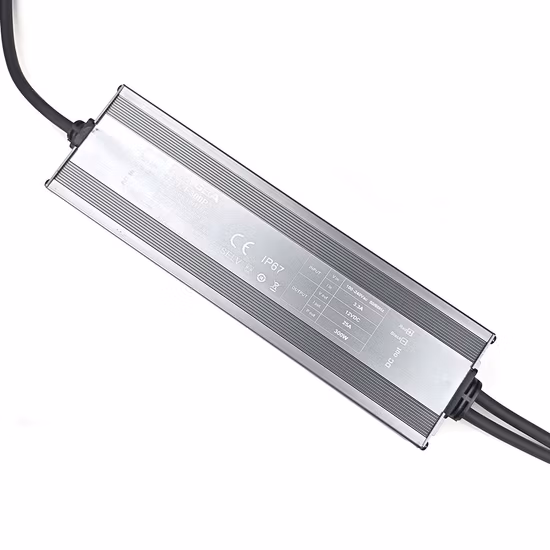

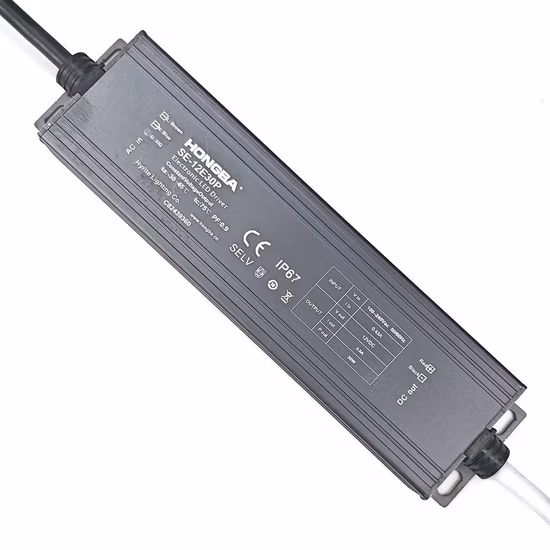

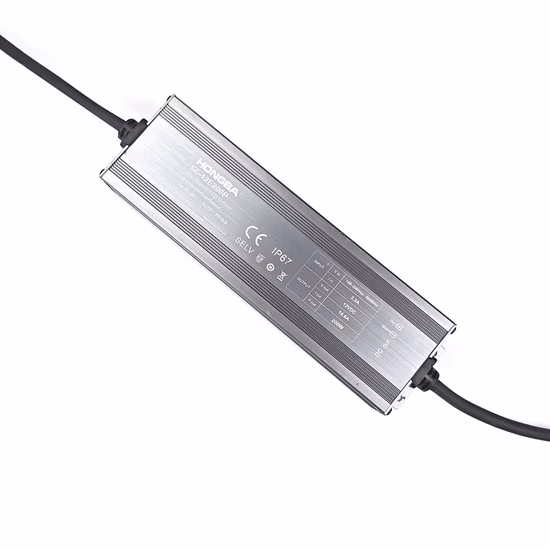

Single Output LED Driver 12V 15A 180W Switching Power Supply for LED Strip Light and Security Camera

Basic Info

Model NO.	SMPS-180-12
Voltage Regulating Mode	Width Modulation Type
Power Supplying System	Level 1 Power Distribution Equipment
Energy Transmission	One-way Transmission
Modulation System	PWM
Certification	CE, RoHS, ISO, FCC, Bis
Brand	Shampower
Output Voltage	DC 12V
Output Current	15A
Typical Efficiency	85%
Protection	Olp SCP Ovp Otp
Customized Service	OEM/ODM
Transport Package	Individual Packaging Box for Each Product
Specification	200*97*42(L-W-H)mm
Trademark	SHAMPOWER
Origin	Foshan, China
HS Code	8504401400
Production Capacity	200 Thousand PCS/Month

Product Description

Quick Detail:

1. 15 years of experience in R&D and production of switching power supplies2. 5V & 12V & 18V & 24V & 36V & 48V available to switching power supplies3. Available in wattages 12W to 720W4. 85% high efficiency 5. 24 hours 100% full load burn-in test6. Short circuit, overload, overvoltage, overcurrent and leakage protection7. 10 years of trouble-free working time8. CE & RoHS & FCC listed9. ODM & OEM supported and Fast delivery

12V 15A Technical Specification
Model No.	SPMS-180-12
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	15A
	Power	180W
	Typical Efficiency	85%
	Adjustable Range of Voltage	DC 11V-13.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K [email protected]°C(MIL-HDBK-217F)
Warranty	2 years
Feature	Dimension(L*W*H)	200*97*42 mm
	Weight	460g
	Inner box size	100*42*208 mm
	Inner box weight	14g
	PCS/CTN	50PCS/CTN
	CTN size	54*26*45 cm
	GW/CTN	29 kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

Applications:

1. Digital and electronic products
2. 3D Printer
3. Fiber transceivers, game player, LED, CCTV camera4. Electrical equipment, Instrumentation5. Industrial equipment6. Communications and security products;7. LED Strip Lighting/ LED lamp / LED Lights8. LED Display, etc.

Packaging & Shipping:Our power supply package: Each power supply is in one white gift box; 100 boxes to a carton; Customization AcceptedDelivery Detail: usually 3-5 working days also depending on order quantity.

Payment:
We accept T/T, LC, Western Union, and Paypal before production buyers have any problems with payment, please feel free to contact us.

FAQ:
Q1: What is the warranty for a high-quality power supply?A1: For the power adapter, we have a 1-year warranty, Any quality problem happened in this period of time for our reason, we will send the replacement parts in the next order.Q2: How soon can I get samples for testing to check quality?A2: After the price is confirmed, for our normal products (not customized products), we can send samples for you in 1-2 days. And our samples are usually not free. After large orders are placed samples costs can be refundable.
Q3: What is your defective rate for a high-quality power supply?A3: The defective rate for our high-quality power adapter is about 0.3%~0.5%.Q4: Can you accept OEM&ODM service business?A4: Yes, we can customize the products, labels, and packages to your demands.Q5: What are your payment terms?A5: Standard terms: T/T in advance. Large amount: L/C at sight. Small amounts like sample fees: Paypal and Western Union.Q6: What about the delivery time?A6: In 24 hours for 1-1,000PCS. In 72 hours for 1,000-5,000PCS. In 5 days for 5,000-20,000PCS. In 1 week for over 20,000PCS.Q7: How do you usually ship the goods?A7: For small orders, by express. For large orders, If you need it urgently, by air, and also can by sea, but take time. But we promise to find the most economic and safe way to deliver the goods for you.
